Key Features

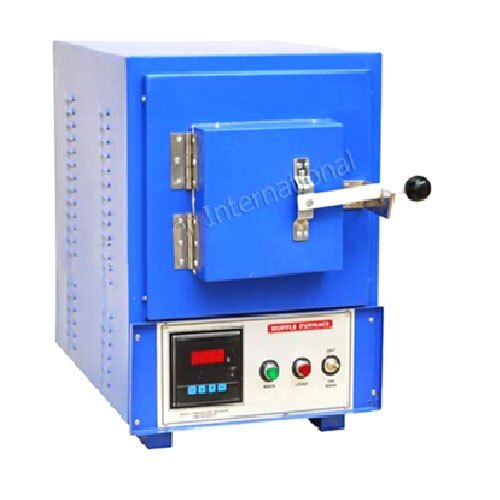

Programmable Digital PID control with ± 1.0°C resolution; JSR Muffle Furnace
3 Patterns Memory, 9 Ramps and 9 Dwell Segments, Max. 999 Cycles repeatable for each pattern
Program Mode / Constant Temp. Mode
Pattern Link Function
Segment Skip Function
Automatic STOP timer Max. 99 min 59 sec JSR Muffle Furnace
Typical Specifications for 4L Units
Chamber Size: Approximately 100 x 100 x 225 mm (4″ x 4″ x 9″).
Max Temperature: 900°C to 1200°C for standard lab ashing.
Heating Element: Kanthal or high-grade nichrome wire.
Controller: Digital PID controller with SV (Set Value) and PV (Process Value) displays.
Power: Often requires 220-240V single-phase power.
Estimated Pricing
Basic Digital Models: Range from ₹9,500 to ₹18,500 depending on the manufacturer and temperature limit.
High-En…
