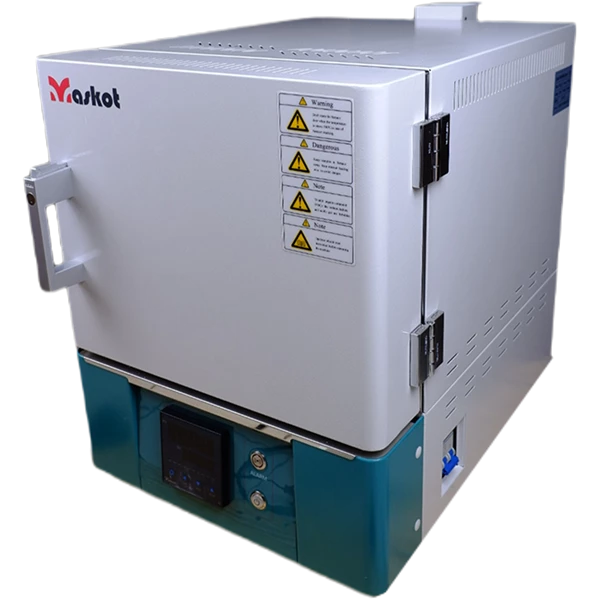

Technical Specifications: 7L Muffle Furnace (China)
Chamber Capacity: 7 Liters
Temperature Range:
Heating Element: Fe-Cr-Al Alloy wire or Silicon Carbide (SiC)
Chamber Material: High-density Alumina Ceramic Fiber (Lightweight & energy saving)
Controller Type: Microprocessor-based PID Controller with Digital Display
Programming: Multiple segments/steps (e.g., 7 periods/9 steps) for ramp and soak cycles
Power Supply: AC 220V/50Hz
Power Consumption: 4.0 kW – 5.0 kW
Safety Features: Over-temperature protection, sensor failure alarm, and door-opening power cutoff.
Common Applications: Ashed determination, heat treatment, material sintering, and melting.
Key Features & Safety
Safety Interlocks: Automatic power-off switches that trigger when the door is opened to protect the operator.
Protection…
